Patient Monitor ВТ-780

Product Code:BT-780

In Stock

136 369 грн

The consultation on assortment of equipment
The manufacturer's official warranty is 12 months
Free delivery
Free commissioning and staff training
Certified customer service
Service support during the warranty and post-warranty period

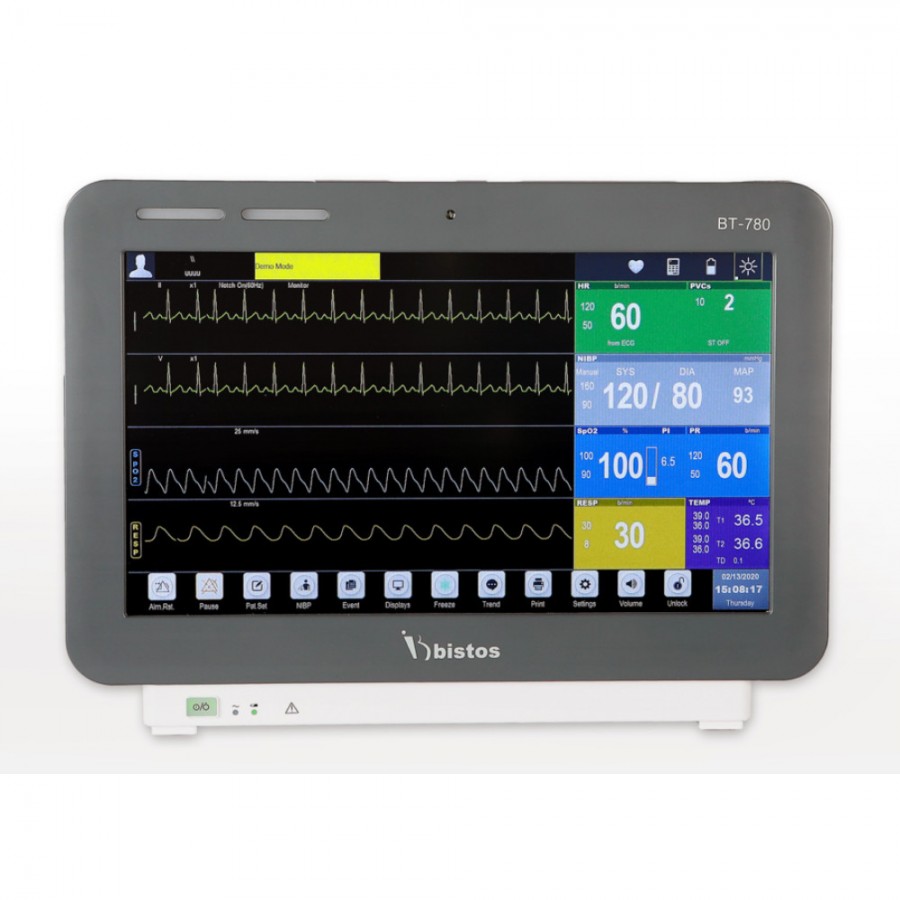

Patient monitor BT-780 with a 15.6” inch TFT touch screen.

This device Multi-parameter Patient Monitor provides various patient vital signs such as pulse rate, ECG, respiration, blood oxygen saturation, blood pressure and temperature by placing or inserting the various sensors to the appropriate site of patient.

The device is composed with display and control circuit, and input part for various sensors. It detects ECG, SpO2, NIBP, etc. using ECG cable and specific probes and sensors. The detected analog signal amplifies and converted to digital. This concerted data feed to the CPU and converted to the display format as number and waveform.

This device is incorporated with alarm system. The alarm generated when the detected signal range is beyond the user set alarm limits.

Key features of this patient monitor:

ECG registration with pacemaker detection
Registration of the ST segment and 16 types of arrhythmias
Intelligent cuff inflation pressure adjustment
Possibility of fixing on a horizontal rod
Possibility of retrofitting with IAT & Cardiac Output module, Plug & Play modular printer
More than 5 hours of battery life
A wide range of DC input voltage allows the device to be used in ambulances
Connection to a central monitoring station
Export HL7 data to clinical information systems
15.6" LCD color touch screen
Visual and audible alarms indicate critical values
The signals are converted into digital data and evaluated
Easy to install and operate
Can be used for newborns, children and adults
Built-in battery status display
Ultra-thin design
High quality processing
Available with or without printer

Measured values

Breathing rate
Non-invasive blood pressure (NIAT)
Pulse
Blood oxygen saturation (SpO2)
Body temperature
Physiological signals

Basic configuration of BT-780

Main body with 15.6 inch touch screen and built-in lithium-ion battery
ECG cable and electrode
Adult SpO2 probe and extension cable
Non-invasive blood pressure cuff
Temperature probe
AC power cord

Options of BT-780

External plug-in printe

Technical data

Input voltage	A.C. 100 V - 240 V
Frequency	50/60 Hz
Built-in rechargeable lithium-ion battery	D.C. 11.1 V, 4400 mAh
Charging Time(Fully)	4 hours
Operating Time(When it fully charged)	5 hours
Dimensions Main Unit	410(W) X 298(H) X 120(D)
Weight	<= 4.9 Kg for standard configuration
Display Type	Color TFT touch screen LCD. Size and resolution 15.6”, 1366*768 pixels
Available display formats	Standard Screen, 7-Lead ECG Full Screen, Large ECG Screen, Large Font Screen
Multi-language software	English, German, Turkish, Spanish, French, Polish, Italian
